Helium Leak Detector

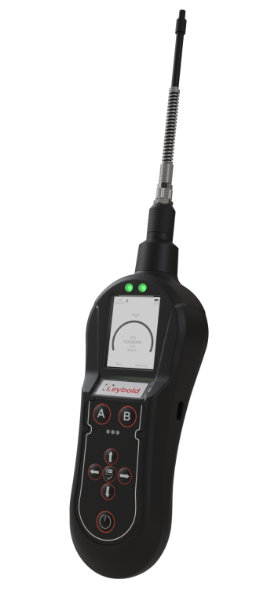

Handheld Helium Leak Detector
Even in high magnetic fields like MRI conditions, the PHOENIX MOBILIS Ultra’s precision, one-hand operation, and compact design make it perfect for finding leaks in difficult-to-reach places. It has the following features:
Extremely sensitive to ammonia, hydrogen, and helium
Large LCD for easy vision and navigation
Visual and auditory leak detection
Auto-zero at launch to ensure immediate preparedness
Multiple unit readings (cc/sec, g/yr, and mg/m³) and on-device data storage
An affordable, portable way to find leaks quickly and precisely.
Applications :-
- Industrial Manufacturing
- Automotive Industry
- HVAC & Refrigeration
- Medical (MRI & Imaging)
- Research & Development
- Aerospace
- Semiconductor
- Pharmaceutical Production
- Energy & Power Plants
Advantages :-
- Easy to use
- Highly Sensitive
- Magnetic Field Resistant
|
Parameter
|
Value
|
|---|---|
TableTop Helium Leak Detector
Table top Leak Detector uses a mass spectrometer tuned to detect helium, which is used as a tracer gas to locate and/or measure very small leaks in enclosed devices or systems. It works both as precise instrument and a robust workhorse, featuring an easy-to-use touch screen interface and menu structure that quickly connect users to powerful leak detection capabilities. Built-in application setups shorten test cycles, and setups can be saved to assure repeatability.
Features :-
- Six different application setup guides help you correctly configure your instrument for the best performance, ensuring that parameters are properly set for a thorough and efficient test.
- Large, durable, responsive, industrial touch screen rotates 180° for ideal viewing.
- Clean, intuitive user interface allows immediate access to often-used features and a flat menu structure allows you to quickly find the setting you need.
- Startup wizard simplifies set up on first-time power up.
- Enhanced charting capabilities include zoom for closer inspection of data, color-coded set points, and time-based plot records of leak rate and pressure.
- A large work surface provides plenty of room for parts to be tested, tools, etc.
- Improved power-off process keeps spectrometer under vacuum and protects the turbo molecular pump.
|
Specification
|
Table Top
|
|---|---|
|
Smallest detectable helium leak rate
|
|
|
Vacuum operation mbar l/s
|
≤ 5 x 10-12
|
|
Sniffer mode mbar l/s
|
< 1 x 10-9
|
|
Smallest detectable hydrogen leak rate
|
|
|
Vacuum operation mbar l/s
|
≤ 1 x 10-8
|
|
Sniffer mode mbar l/s
|
< 1 x 10-7
|
|
Units of measurement (selectable)
|
|
|
Pressure
|
mbar
|
|
Leak rate
|
mbar.l/s
|
|
Sniffer mode
|
ppm
|
|
Leak rate display area
|
1 x 10-12 to 1 x 10-1
|
|
Max inlet pressure
|
15 mbar
|
|
Max. inlet pressure w/ partial flow pump set
|
1,000 mbar
|
|
Pumping speed during evacuation process
|
|
|
50 Hz m3h-1
|
2.5
|
|
60 Hz m3h-1
|
3
|
|
Helium pumping speed in vacuum mode
|
|
|
GROSS Modus
|
0.4
|
|
FINE Modus
|
1.2
|
|
Ultra modus
|
>3.1
|
|
Time constant of the leak signal (blank flanged, 63% of the final value)
|
<1 sec
|
|
Run-up time (after switching on)
|
≤ 110 sec
|
|
Mass spectrometer
|
180° magnetic sector field
|
|
Ion source
|
2 yttrium/iridium long-term cathodes
|
|
Detectable masses
|
2, 3 and 4
|
|
Inlet flange
|
25 ISO-KF
|
|
Dimensions
|
495 X 475 X 319 mm
|
|
Weight
|
40 kg
|

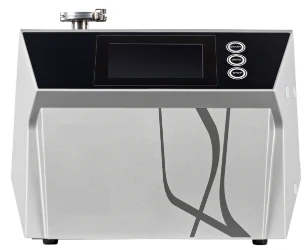

Modular Helium Leak Detector
Features :-
- Short time to test.
- Maximum reliability.
- Wide temperature range allows for operation in challenging environments.
- Vacuum and Sniffing test for both helium and hydrogen.
- Minimum detectable leak rate 1.5 · 10-8 in sniffing mode.
- Minimum detectable leak rate 5 · 10-12 in vacuum mode.
- Modular design optimized for minimum space requirements.
- Modular design optimized for maximum integration options.
- Wide range of I/O interfaces.
- Available with oil-sealed or dry backing pump.
- Detection sensitivity improved by turbo pump’s optimized helium pumping speed.
- Pumping speed during evacuation from 2,5 m3/h up to 3 m3/h.
- More data flexibility: USB and bus interface options.
|
|
Units
|
Modular Helium Leak Detector
|
|---|---|---|
|
Test Method
|
|
Vacuum & Sniffing
|
|
Detectable gases
|
|
4He,3He, H2
|
|
Min detectable leak – vacuum
|
mbar l/s
|
≤ 5 · 10-12
|
|
Min detectable leak – sniffing
|
mbar l/s
|
≤ 1.5 · 10-8
|
|
Pumping speed for He
|
l/s
|
6
|
|
Maximum inlet test pressure
|
mbar
|
18
|
|
Primary pump type
|
type
|
1 or 2 rotary vane pumps
|
|
Backing Pump Capacity
|
m3/h
|
25 or 50
|
|
I/O Interface
|
—
|
RS232, Digital, Analog, USB
|
|
Start-up time (20° C)
|
min
|
<3
|
|
Operating Temp
|
celsius
|
10° to 45°
|
|
Dimensions – vacuum module
|
mm
|
279 x 264 x 197
|
|
Dimensions – electronic module
|
mm
|
216 x 317 x 111
|
|
Dimensions – control panel
|
mm
|
241 x 54 x 133
|
|
Weight – vacuum module
|
kg
|
15
|
|
Weight – electronic module
|
kg
|
5
|
|
Weight – control panel
|
kg
|
1.3
|
