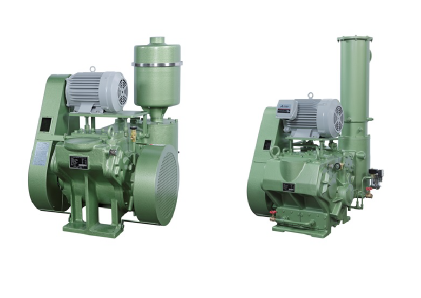

Rotary Piston Pump
Rotary Piston Pump
- (1) Stable and continuous operation at high pressures (low vacuum zones).
- (2) Withstanding operation characterized by severe repetition.
- (3) Robust exhaust valve.
- (4) Sight glass for observing oil circulation.
- (5) Oil gauge for observing oil level.
- (6) Efficient oil separator.
- (7) Easy to make an inspection and maintain the exhaust valve storage.
- (8) Easy cleaning oil tank because of a large cleanout.
- (9) Quickly discharge the oil accumulated in oil tanks via the oil drain valve.
- (10) Easily maintained shaft sealing assembly.
The pumps are mechanically acting vacuum pumps on the principle of a rotary piston or plunger. The pumps are manufactured as single and two-stage pumps. The pumps are single-stage pumps with a pumping speed of 250 m3/h (147cfm) and an ultimate pressure of 0,04 mbar (0.024 Torr). The DK pumps are two-stage pumps with a pumping speed of 200 m3/h (118 cfm) and an ultimate pressure of 5•10-4 mbar (3•10-4 Torr)
Applications :-
- Piston pumps can be used to move liquids or compressed gases and can also pump viscous media and media containing solid particles.
- Piston pumps are used for water and oil hydraulics, industrial processing equipment, high pressure cleaning and the pumping of liquids.
|
MODEL
|
P90
|
P180
|
P222
|
P450
|
P600
|
P901
|
|---|---|---|---|---|---|---|
|
Nominal Volume Flow
Rate (50/60Hz) |
90
|
180
|
222
|
450
|
600
|
901
|
|
Pumping Speed
(PNEUROP) (m³/h) |
80
|
160
|
200
|
400
|
520
|
800
|
|
Ultimate Partial Pressure
Without Gas Ballast (mbar) |
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
|
Allowable Max. Backing
Pressure (mbar) |
1.3
|
1.3
|
1.3
|
1.3
|
1.3
|
1.3
|
|
Continuously Operable
Inlet Pressure (mbar) |
400
|
400
|
400
|
400
|
400
|
400
|
|
Pumping Down Time
Limit (Approx.) |
5 min
(1000 to 10 mbar) |
5 min
(1000 to 10 mbar) |
5 min
(1000 to 10 mbar) |
5 min
(1000 to 10 mbar) |
5 min
(1000 to 10 mbar) |
5 min
(1000 to 10 mbar) |
|
Motor Power (kW)
|
2.2
|
4
|
5.5
|
11
|
18
|
18.5
|
|
Rated Rotational Speed (rpm)
|
1440
|
1440
|
1440
|
1440
|
1440
|
1440
|
|
Oil Capacity (L)
|
5
|
15
|
15
|
18
|
18
|
50
|
|
Weight with Oil (kg)
|
95
|
125
|
160
|
280
|
360
|
520
|
|
Cooling Method
|
Air Cooling
|
Air Cooling
|
Air Cooling
|
Air Cooling
|
Air Cooling
|
Air Cooling
|
|
Intake Connection
|
G 1 ½”
|
G 1 ½”
|
G 2"
|
G 2 ½”
|
G 2 ½”
|
G 3”
|
|
Exhaust Connection
|
G 1 ¼”
|
G 1 ½”
|
G 1 ½”
|
G 2"
|
G 2"
|
G 2 ½”
|
