Vacuum Measurement​​
- Display ranges from 5 x 10-9 to 2000 mbar (0.75 x 10-9 to 1500 Torr)
- Readout selectable between mbar, Torr or Pascal
- Adjustable switching thresholds with variable hysteresis, floating changeover contacts and visual indication of the switching status in the display
- option of entering gas correction factors
- Separate chart recorder outputs 0 – 10 V for each measurement channel

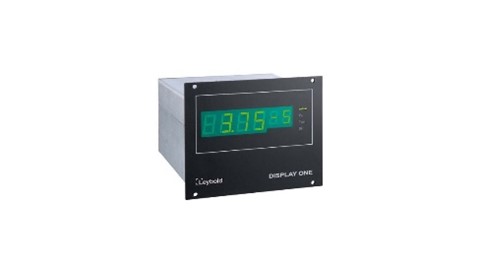

- Compact bench top enclosures which can also be rack mounted for fitting into 19", 2 or 3 HU racks

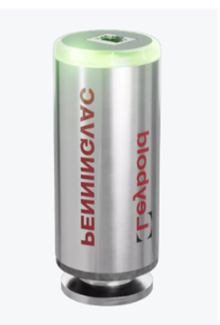

- Our combined cold cathode gauges use the inverted magnetron principle of cold cathode ionization and is combined with a pirani gauge.
- By combining the technologies into a single more compact sensor, the measuring range is increased enabling a reliable pressure measurement from atmosphere to 1 x 10-9.
- The on/off function of the cold cathode is controlled automatically by the integrated pirani, seamlessly eliminating any risk of running the cold cathode at too high a pressure which could lead to a reduced lifespan.
- Both analogue 0-10V Linear outputs and digital communications are available.
Their high accuracy, fast response times, and robust ceramic diaphragm, make them unbeatable for measurements between 1000 and 1 x 10-4Â mbar (1 x 10-5Â Torr).
